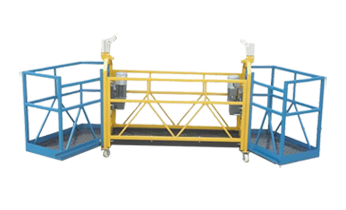

    Steel Suspended Platform / Swing Stage / Cradle

    Suspended Platform video

    Summary

    Temporarily Installed Suspended Access Equipment, also known as Suspended Platform or Temporary Access Equipment, is a kind of construction machinery for high-rise building or multistory building. It's a lightweight rigid steel-made object capable of carrying persons onto a certain height so as to facilitate the aerial work, such as plaster, painting, repairing, decoration, cleaning, loading heavy row materials to higher floors, etc. Suspended access equipment is also applicable in construction works of big-size tank, bridge and dam.

    Our suspended platform machinery helps improve working efficiency, and fast construction at reduced cost.


    Features

    [A] Simple and light weight structure capable of carrying huge load
    [B] The size of platform can be customized while manufacturing
    [C] Made of pure steel
    [D] Powered by motor system of the CE standards


    Technical Specification

    Model Type ZLP 800 α Type ZLP 800 S Type ZLP1000
    Rated Load Capacity 800 kg 800 kg 1000 kg
    Rated Lift Speed 8 m/min 8~10 m/min 8~10 m/min
    Length of Platform 7,5 mtr 7,5 mtr 7.5 mtr
    Wire Rope Diameter 8.6 mm, 4*31+IWS 8.6 mm, 6*19+IWS 8.6 mm, 6*19+IWS
    Hoist Model Type LTD 8 α Type LTD 8 S Type LTD1000 S Type
    Rated Lift Force 7.84 KN 7.84 KN 9.8 KN
    Weight 87 KG 87 KG 90 KG
    Motor Power 1.8 KW 2.2 KW 3.0 KW
    Voltage 415 V 50 Hz,
    3-Phase
    415 V 50 Hz,
     3-Phase
    415 V 50 Hz,
    3-Phase
    Frequency  50 Hz 50 Hz 50 Hz
    Rotate Speed 1420 rpm 1420 rpm 1420 rpm
    Break Torque 15 KN 15 KN 15 KN
    Safety Lock Lock Permissible Force of Impact 30 kN 30 kN 30 kN
    Fall Distance Permitted < 100 mm < 100 mm < 100 mm
    Tilt Angle Permitted 3°~8° 3°~8° 3°~8°
    Suspension Mechanism Projecting Length 1.3~1.7 mtr 1.3~2 mtr 1.3~2 mtr
    Adjustable Height of the Beam 1.35~1.7 mtr 1.35~2 mtr 1.35~1.7 mtr
    Weight ight Steel / Aluminum Platform 500 / 400 kg 560 / 400 kg 600 /450 kg
    Weight of Suspension Mechanism nism 360 kg 360 kg 360 kg
    Counter Weight ight 1200 Kg 1200 Kg 1400 Kg

    Note : Above parameters are standard specification of our company, and we could also meet special requirements on platform length and sharp accourding to different countries. sharp accourding to different countries. sharp accourding to different countries.
    If you would like to know some special models such as ZLP300, ZLP500, ZLP2000. Please feel free to contact us for details.


    Special Accessaries

    Special Accessaries

    Roof Suppoting Mechanisms

    Roof Supporting Mechanism

    Safety Features

    Safety features

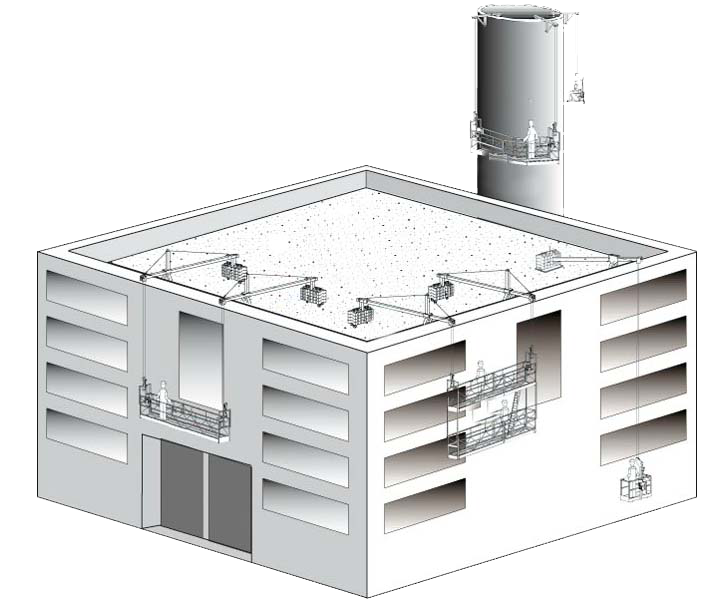

    Chimany image
